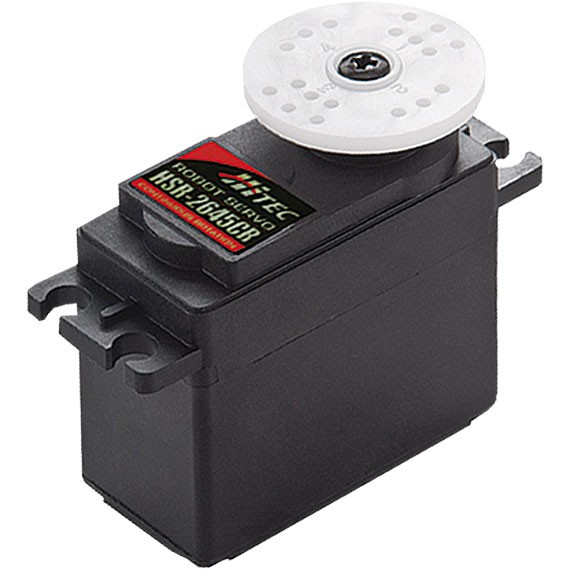

[ HIHSR-2645CR ] SERVO HSR-2645CR (mpx138645)

Digital 360° servo of the 20 mm class

Based on the proven HiTEC HSR-1425CR robotics (continuously turning servo), we have developed the digital HSR-2645CR. This non-proportional, continuously rotating servo impresses with a working range of 4.8 - 8.4 volts and lots of torque. The HSR-2645CR has a very large dead zone by default. So you can be sure that there is a clear distinction between turning left, standing still and turning right. If you set the dead zone to a smaller value with a suitable programming device, e.g. HFP-30, the control range for left and right movements is very large, which results in fine speed control. Furthermore, the HiTEC HSR-2645CR is equipped with a special motor that was specially developed for continuous rotation servo. Double ball bearings on the drive shaft and strong metal gears ensure long-lasting performance.

The Hitec HSR-2645CR is ideal for driving various mechanical systems, such as. B. robotics or driving a model vehicle.

Revolutions per minute:
46 rpm at 4.8 volts
58 rpm at 6.0 volts
73 rpm at 7.4 volts
